Room Freshener & Soap Dispenser – A configuration Challenge

Room Freshener – contains a can with compressed air freshener and a mechanism to press the nozzle to let out the freshener.

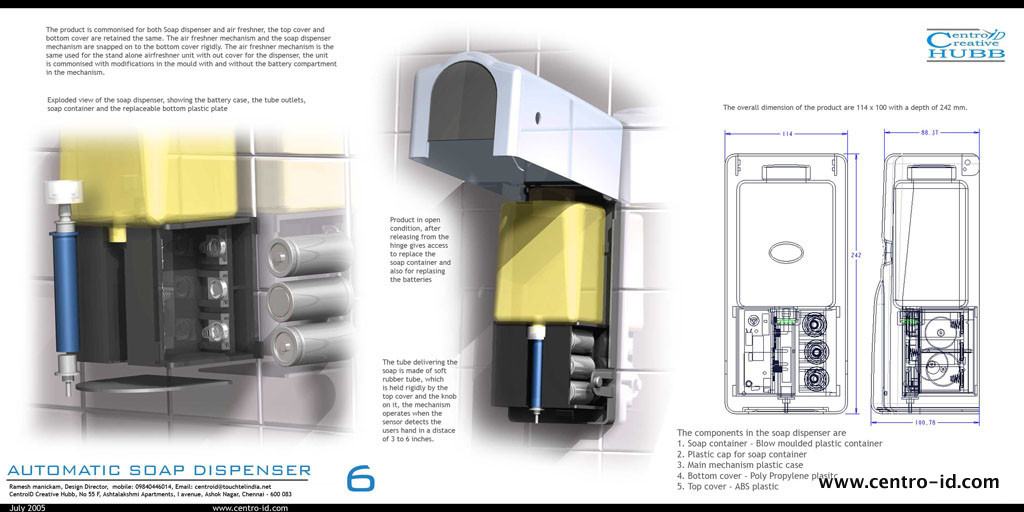

Soap Dispenser – contains a can of soap solution with a mechanism to press the tube to let out a drop of soap solution.

The challenge in this product is the client wanted to have both the products with the same styling and two internal configuration.

0023_inova09

0023_inova08

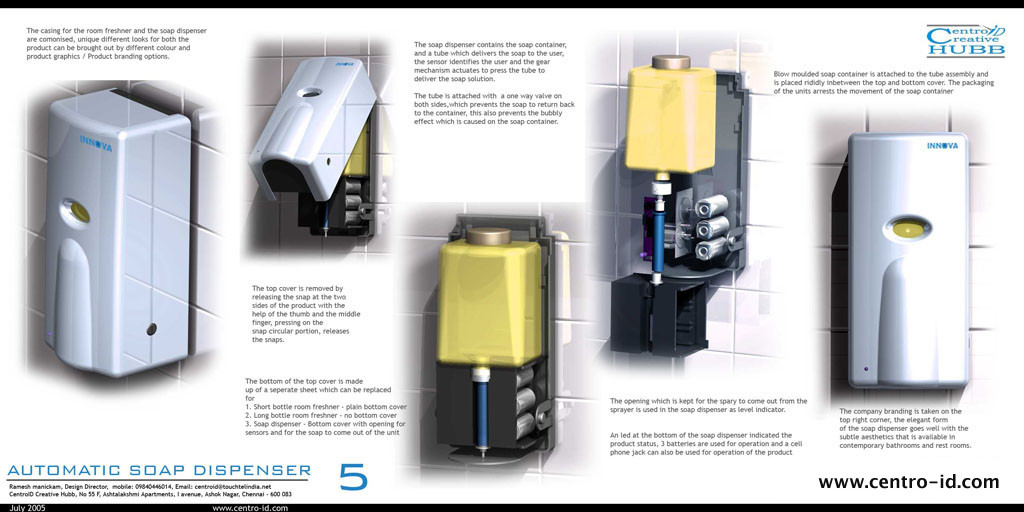

The opening in the centre of the product acts as a air outlet of the room freshener and as a see through indicator for the soap dispenser.

0023_inova10

The styling of the product was made very minimalist and elegant to suit the needs of the home, office users.

0023_inova02

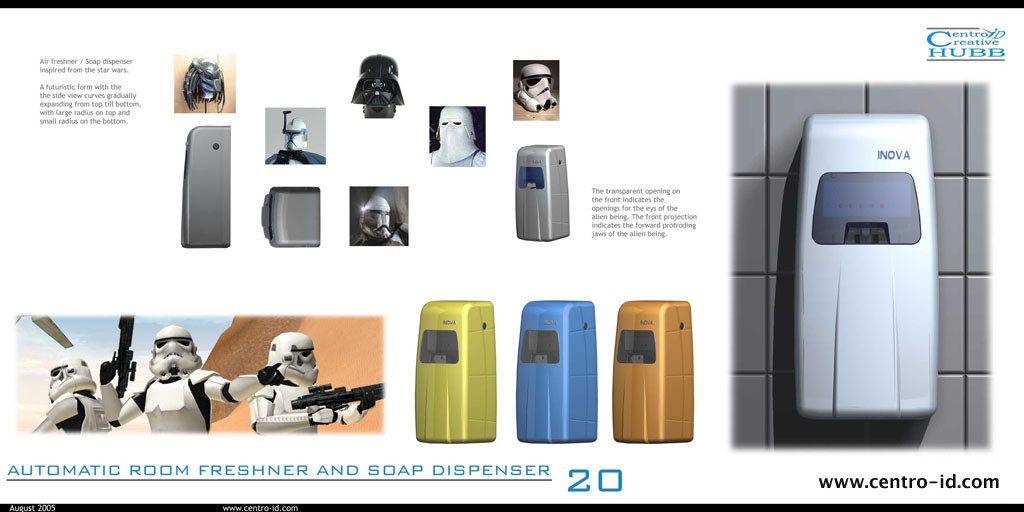

Different versions of the product were explored with various styling options.
